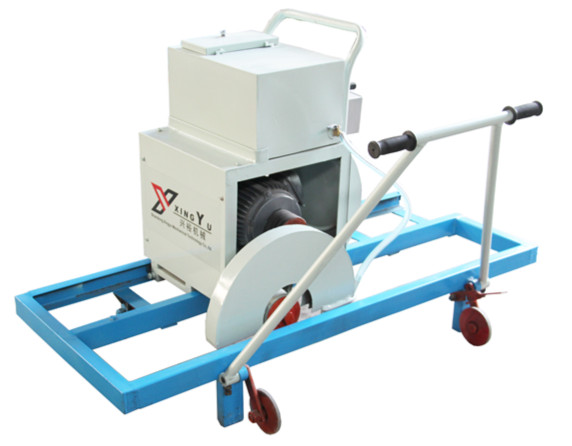

Cutting Machine

This machine is widely used in construction projects to cut the Prestressed Concrete Cored Slab meeting tensile strength into the sizes required by the customer. This machine is compact, efficient, convenient and safe for operation as a necessary equipment in cement and concrete prefabrication profession.

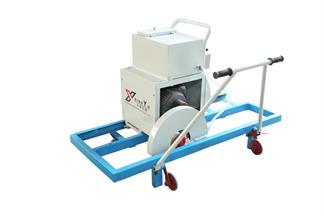

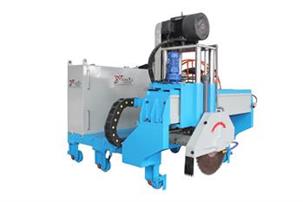

More product image

Product Description

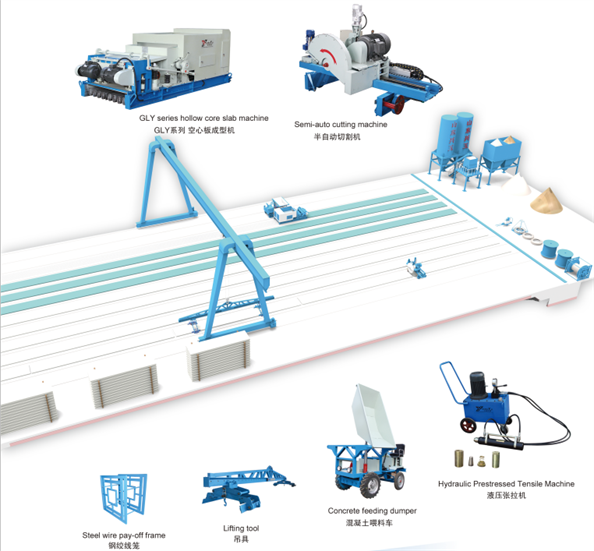

Factory layout:







Description of Hollow Core Slab Cutter:

This machine is widely used in construction projects to cut the Prestressed Concrete Cored Slab meeting tensile strength into the sizes required by the customer. This machine is compact, efficient, convenient and safe for operation as a necessary equipment in cement and concrete prefabrication profession.

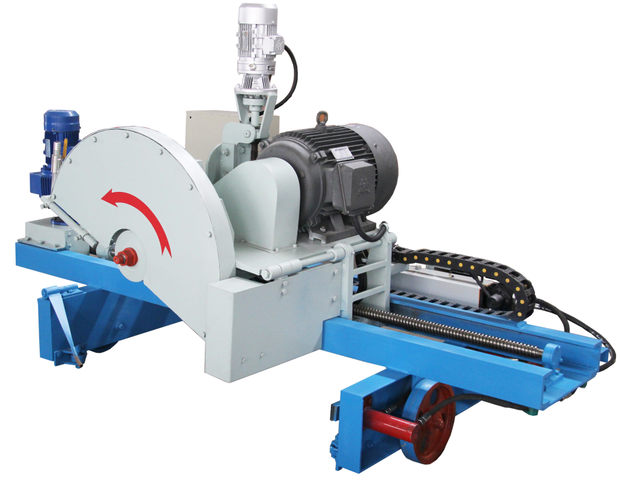

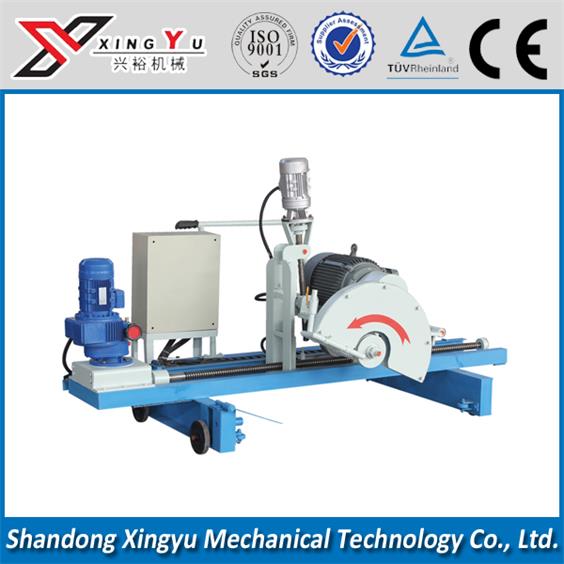

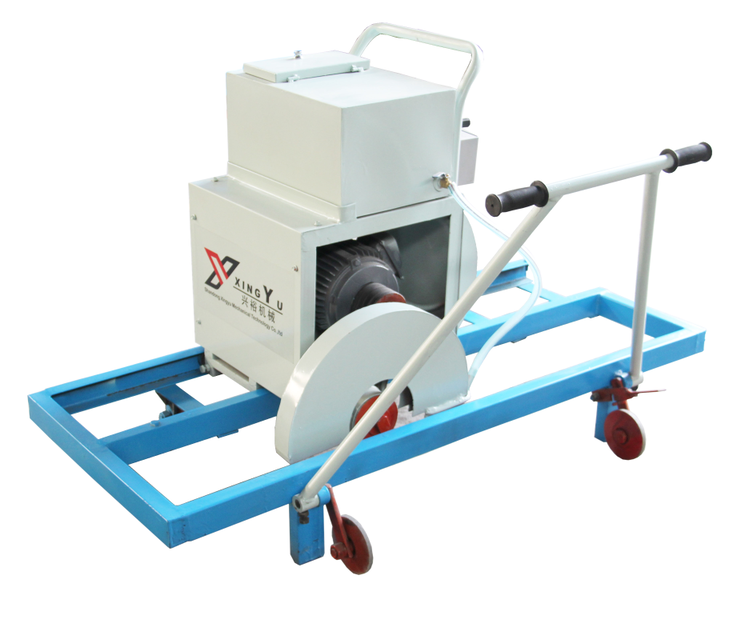

Machine detailed picture:







Product Range&Size

Type Cut depth(mm) Cut length(mm) Diameter of saw blade(mm) Power (KW) Rotary speed r/min Picture of machine
XQH120-600 120 600 400 4 2900
XQH150-600 150 600 500 5.5 2900
XQH180-600 180 600 500 5.5 2900
Electric XQH120-1200 120 1200 400 5.28 2900
Electric XQH150-1200 150 1200 500 8.78 2900

XQH200-1200 200 1200 800 11 1440

XQH250-1200 250 1200 800 11 1440

XQH300-1200 300 1200 800 18.5 1440
Automaticlly XQH380-1200 380 1200 1000 30 1440
XQH380-1200 380 1200 1000 30 1440

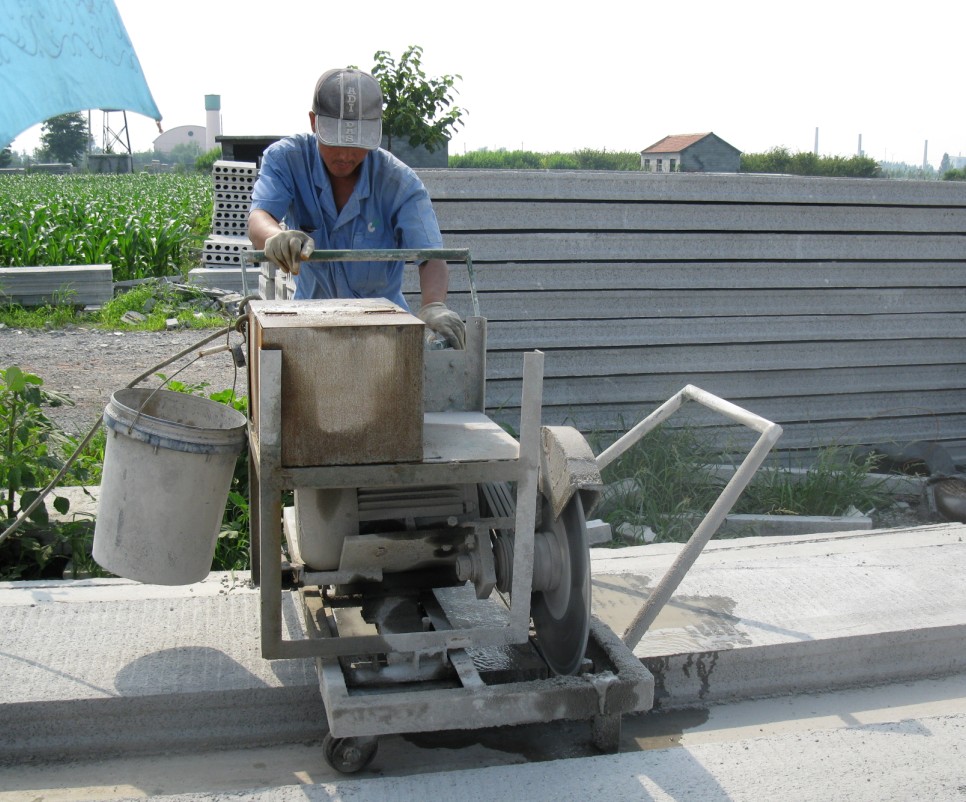

Production process

Usage

Pre-stressed concrete hollow core slab cutting machine is used to cut the well maintained concrete slab to
needed length with diamond saw blade. It can be widely used in the industry of cement parts, constructional engineering.

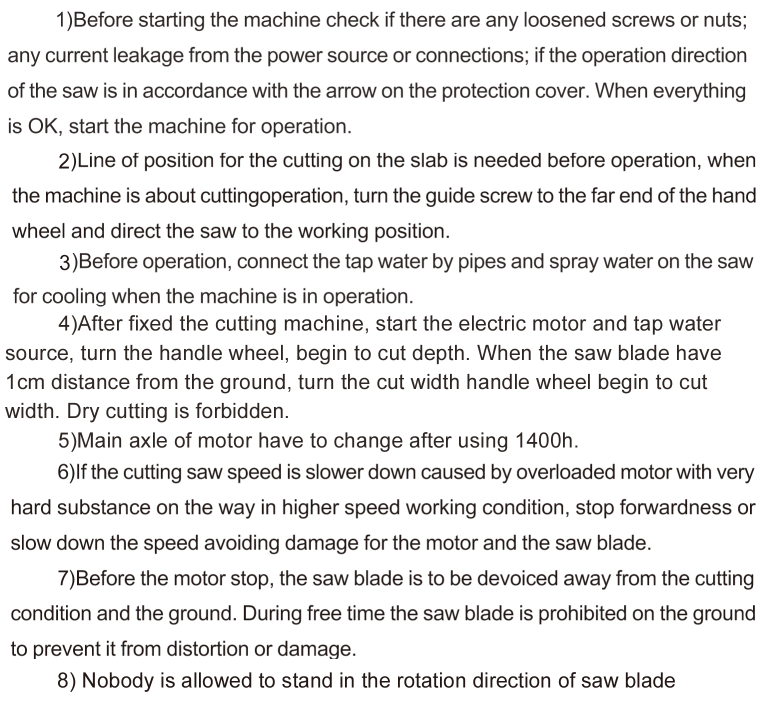

Operation process:
